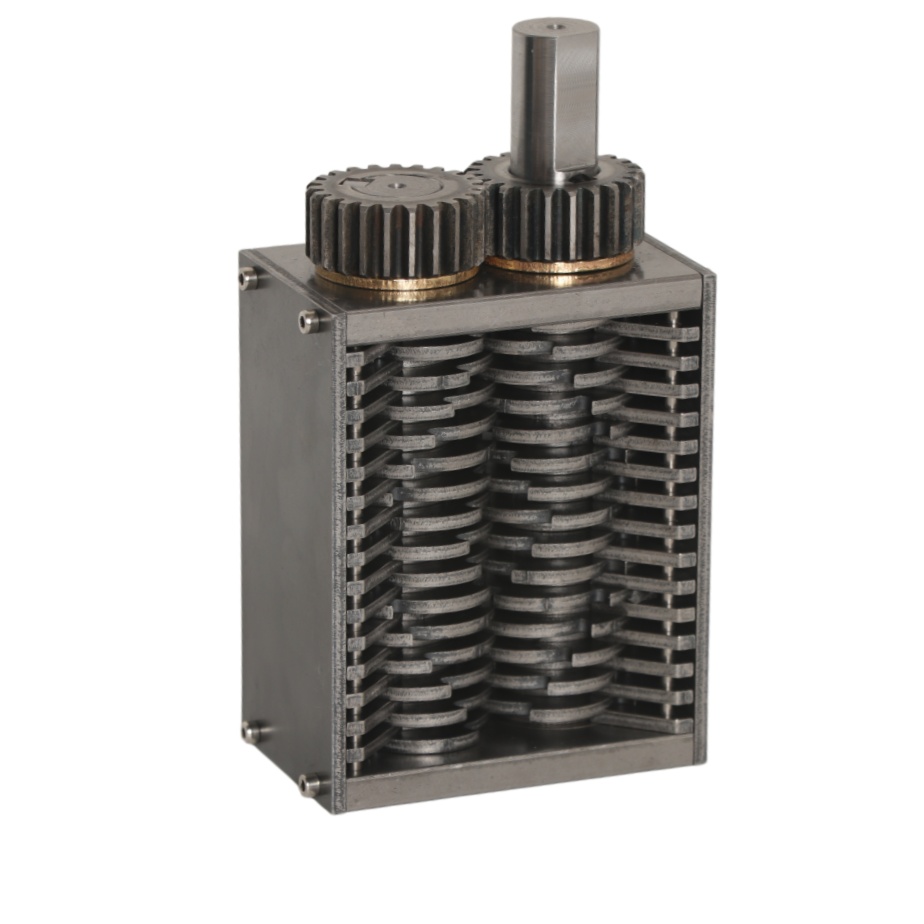

SS120 Blade All Metal Mini Shredder Head | 65Mn Manganese Steel

1. Basic Product Information

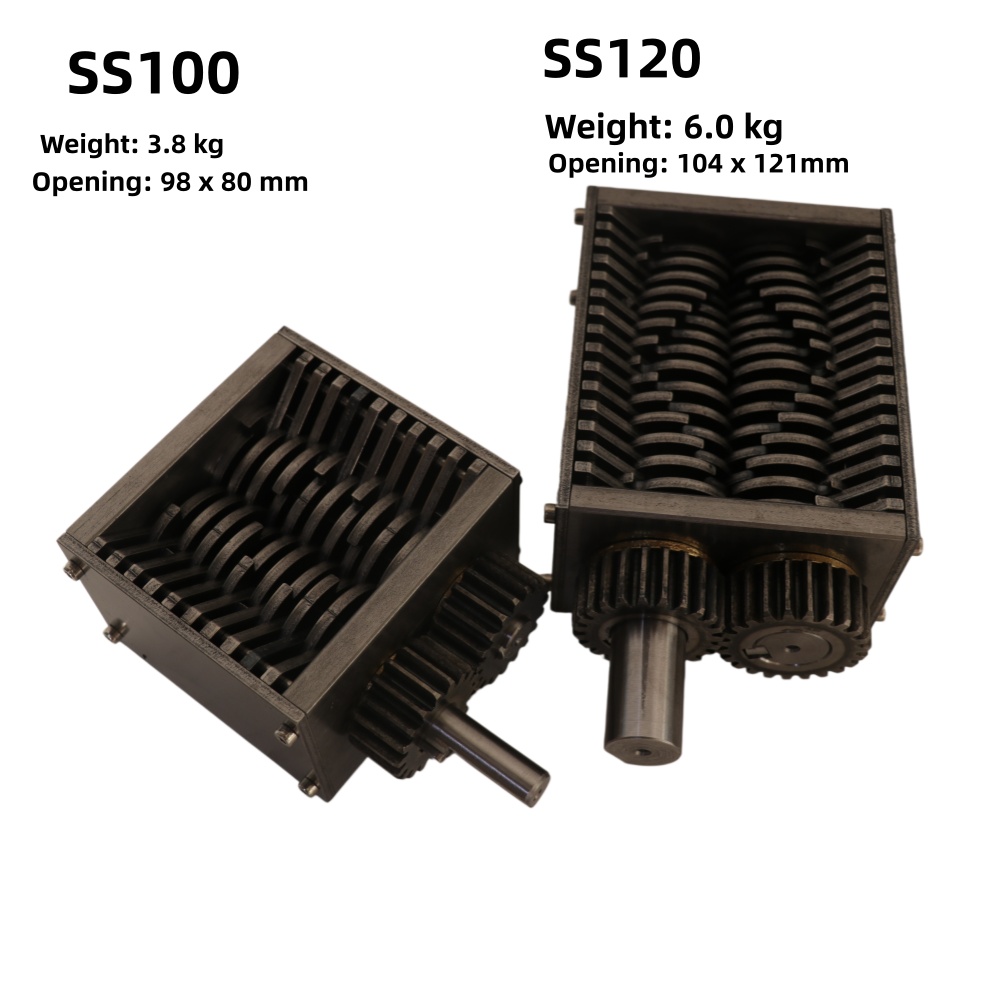

2. Upgrade Comparison (SS100 VS SS120)

• Feeding Inlet: SS120 widened feeding inlet ensures smoother feeding and reduces material blocking probability.
• Blade Tooth Structure: Upgraded from 3-tooth blade of SS100 to 5-tooth blade, greatly improving shredding efficiency.
• Main Shaft Specification: Main shaft diameter upgraded from 15mm (SS100) to 24mm, supporting shredding of harder and thicker materials.
• Blade Quantity: Blade groups increased from 10 sets to 15 sets, effectively improving single-time processing capacity and working efficiency.

3. Product Specification

4. Production & Processing Standards

4.1 Blade Processing Standard

• Adopts high-quality 65Mn manganese steel with quenching and tempering treatment, providing excellent hardness, toughness, impact resistance and crack resistance.

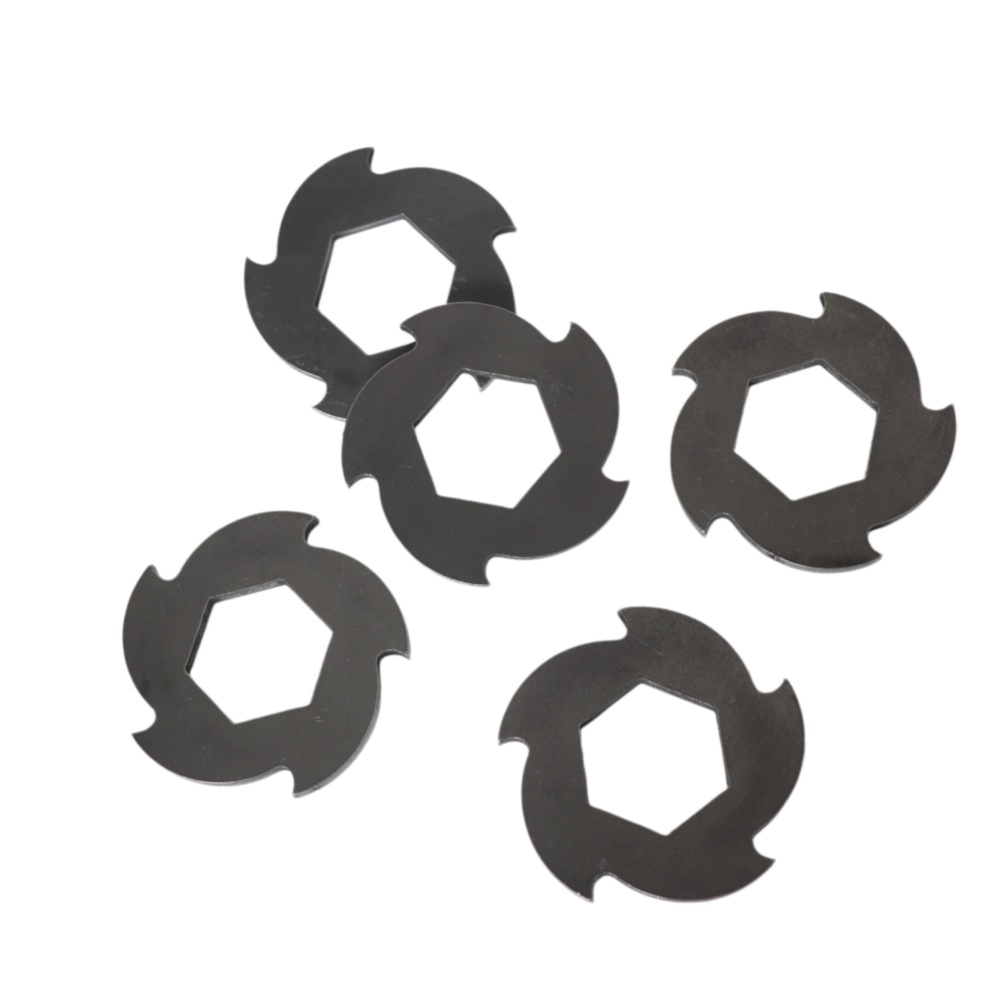

• Blade thickness tolerance: ±0.05mm. Precision 5-tooth stamping forming with smooth and burr-free cutting edge.

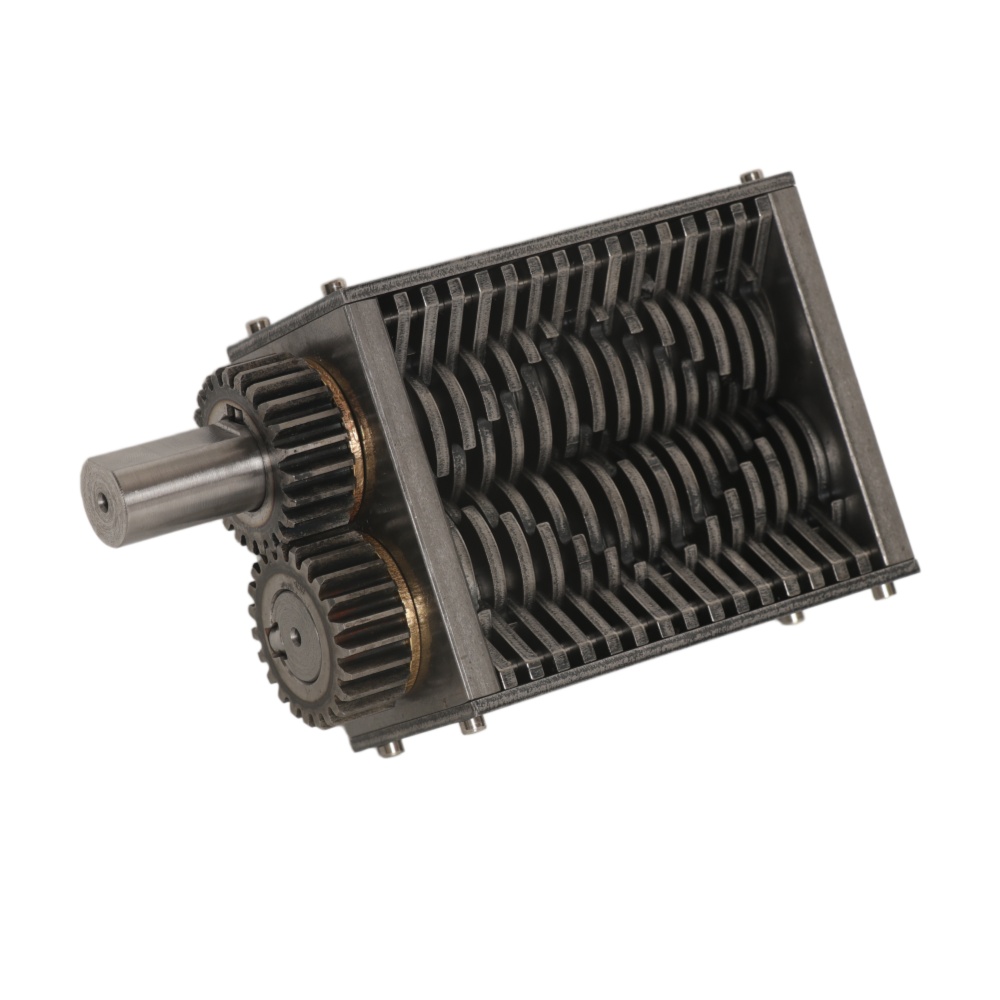

• Double-shaft staggered blade installation with uniform clearance, no friction, no collision and no jamming during operation.

4.2 Housing Processing Standard

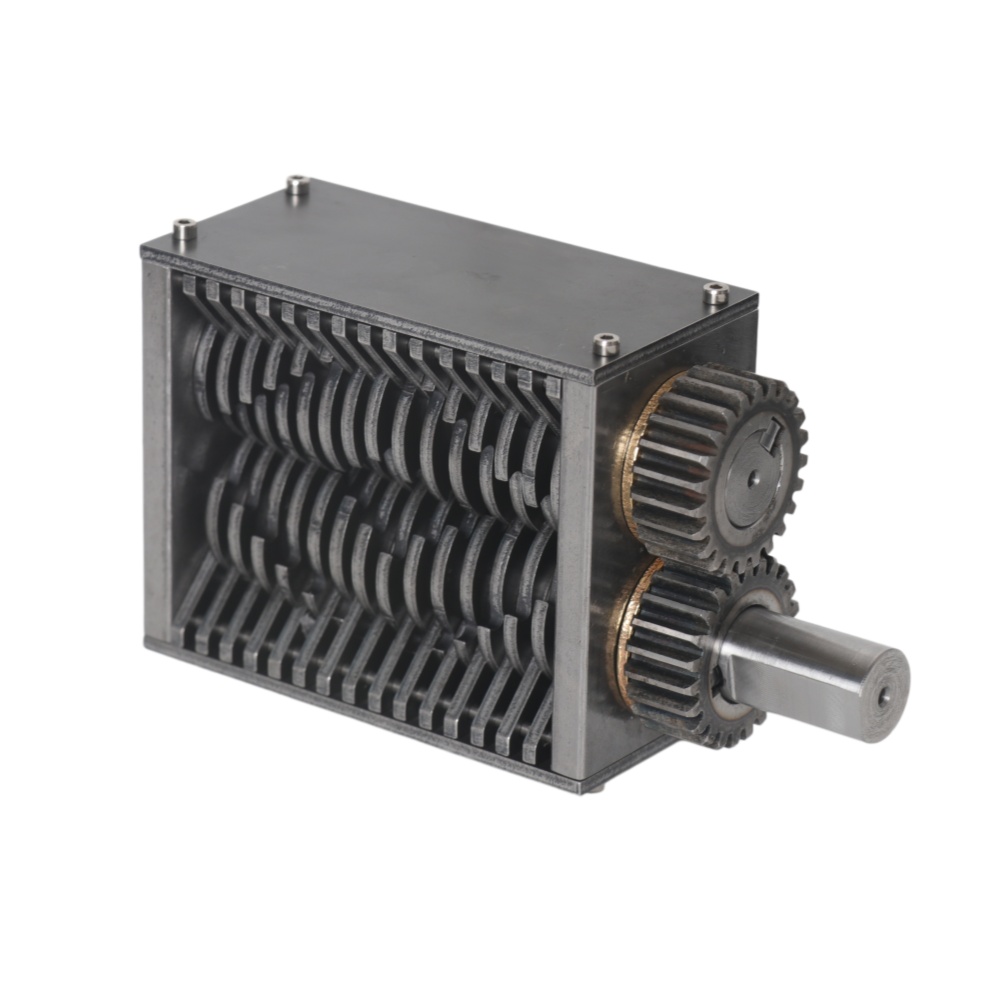

• Full metal steel welded body, strictly controlled dimension 205×110×70mm.
• Surface black anti-rust treatment, precise screw hole positioning for easy disassembly and maintenance.
• Shaft hole coaxiality tolerance ≤0.02mm, ensuring stable and smooth gear transmission.

4.3 Transmission & Shaft Standard

• 24mm solid thickened main shaft with heat treatment, high rigidity, anti-bending and wear-resistant.

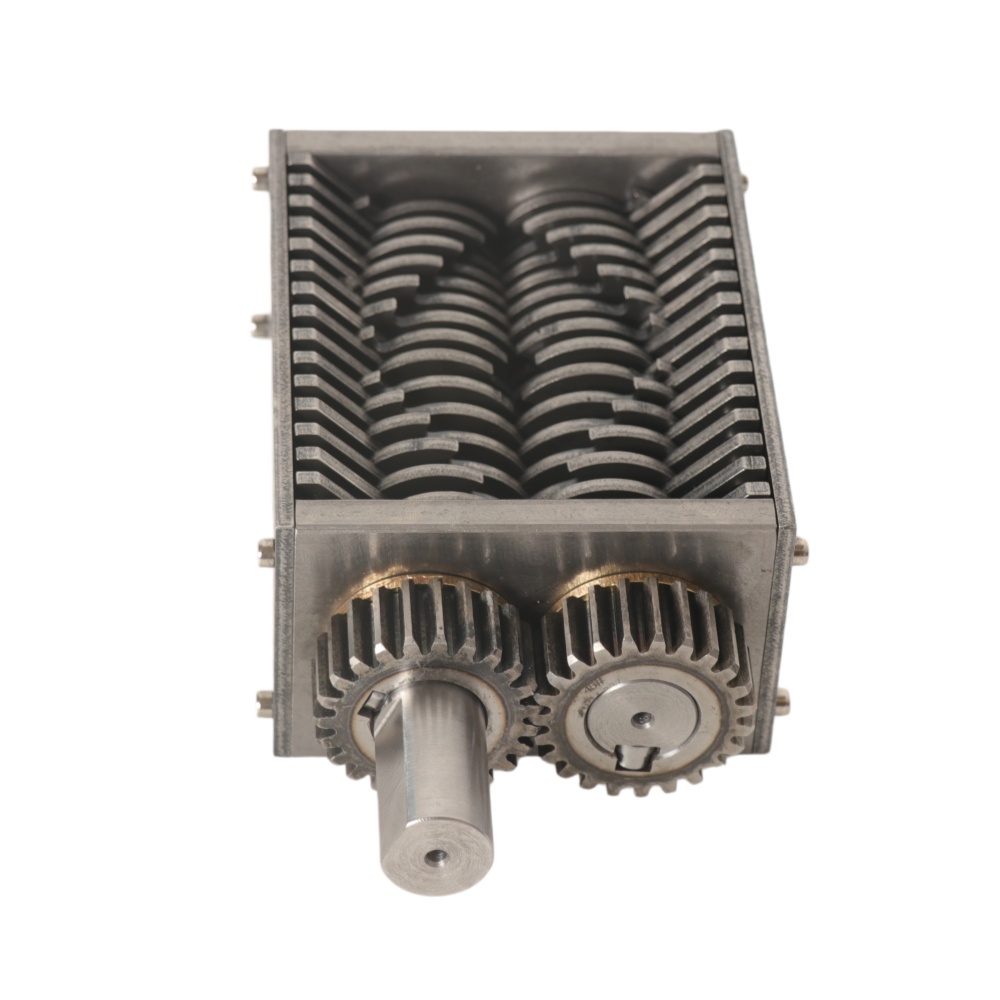

• High-precision transmission gears with smooth tooth surface and reasonable meshing clearance, ensuring stable operation without tooth jumping.

5. Quality Inspection & Acceptance Criteria

• Full operational stroke runs smoothly without abnormal noise or stuck condition.
• Uniform shredding effect for plastic, metal sheets and other materials, no uncrushed bulk residue.
• Net weight tolerance: ±0.2kg.
• No welding defect, complete anti-rust coating, no deformation or crack on blades and body.

6. Core Advantages

• High Durability: Upgraded 65Mn manganese steel blade group, stable cutting performance and long service life.
• Compact & Space-Saving: Mini 205×110×70mm body, 6.0kg lightweight design, easy to place and move.
• Stable Gear Transmission: Precision double-shaft synchronous cutting structure, anti-slip and anti-blocking, consistent crushing effect.
• Easy Maintenance: Detachable structure, convenient cleaning and daily upkeep.

7. Application Scenarios

• University & College Laboratory: Crushing principle teaching, material sample preparation and scientific experiment.
• Scientific Research Institution: Small waste treatment, plastic and metal sheet sample processing.
• DIY & Small Workshop: Thin material shredding, plastic and cardboard waste recycling.
