Products Description:



QL-220 Chocolate & Food 3D Printer Product Manual



1. Product Overview

The QL-220 food-grade 3D printer is a professional food printing device specially designed for chocolate and various fluid edible materials. Equipped with a high-torque motor drive system, automatic leveling system and full food-grade safety structure, it is widely used in bakery stores, cake decoration, institutional teaching and scientific research institutions. It supports personalized food modeling, custom text printing and artistic pattern production for diverse culinary creations.

2. Product Features

2.1 Wide Material Compatibility & Independent Constant Heating System

This printer supports multiple particle-free fluid edible materials, including 100% pure cocoa butter chocolate, salad dressing, jam and icing paste. The built-in constant temperature heating module stabilizes the fluid state of chocolate for consistent printing performance. Unlike ordinary food 3D printers that require customized consumables, this machine perfectly adapts to standard commercial pure cocoa butter chocolate, with a recommended printing temperature of 32℃ to 34℃.

2.2 Food-Grade Disposable Sterile Syringe Design

The device adopts disposable sterile syringes that fully comply with international food safety standards (5 syringes included as standard). The replaceable syringe structure effectively prevents cross-contamination between different materials, ensures every printed food artwork is clean and hygienic, and greatly reduces daily operating costs.

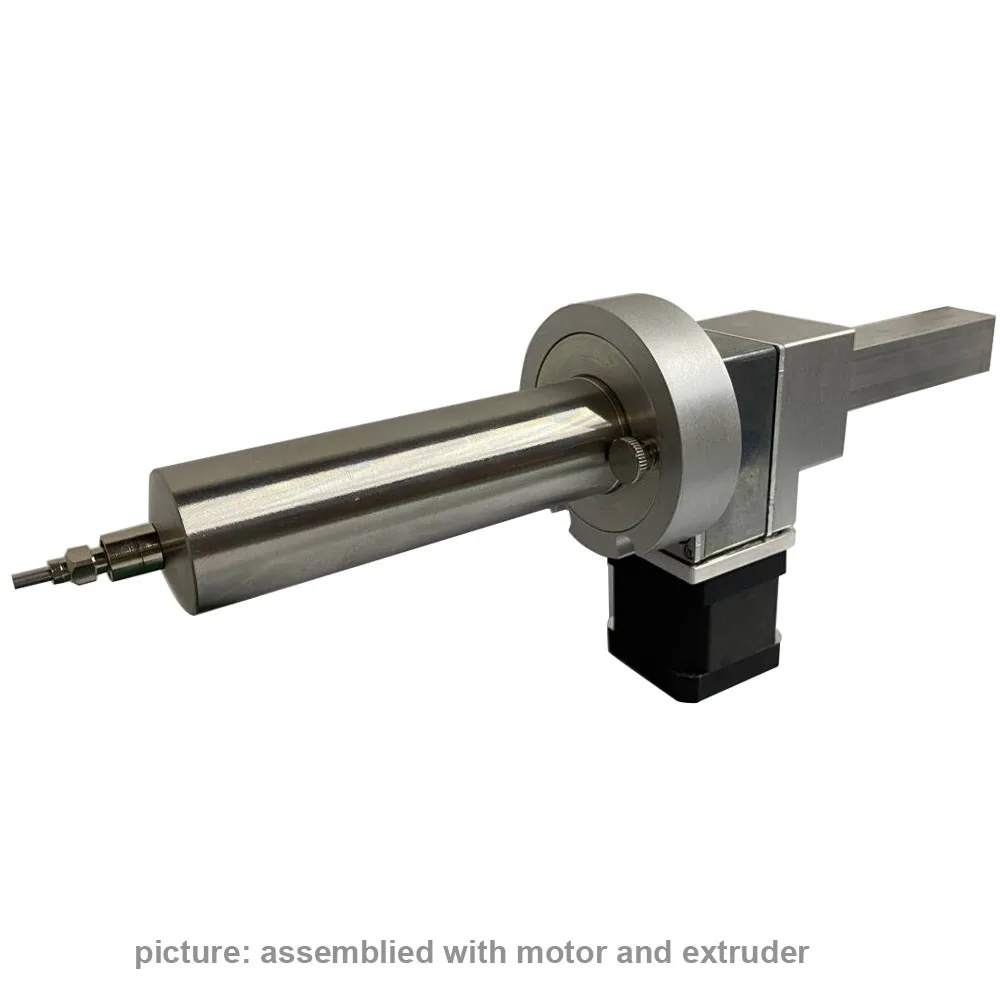

2.3 High-Torque Motor Extrusion System

Adopting a high-reduction gear motor with 10 times higher torque than ordinary motors, the printer delivers powerful and stable extrusion force for uniform and smooth material output. It adapts to food materials of different viscosities and supports high-speed printing, completely solving common defects of traditional food printers such as uneven discharging and nozzle clogging.

2.4 Magnetic Suction Platform & Food-Grade Protective Mat

The printing platform features a magnetic spring steel plate matched with a food-grade protective mat. Printed food models can be easily and completely demolded without residue. It ensures full hygiene and simplifies post-processing procedures significantly.

2.5 Automatic Leveling & Fast Easy Assembly

The built-in automatic bed leveling system greatly improves the first-layer printing success rate. The machine is pre-assembled out of the box and can be fully installed and ready for operation within 10 minutes. Equipped with a 3.2-inch color display screen, it provides intuitive and user-friendly operation for beginners.

2.6 Power-Off Resume Printing & Multi-Language Support

It supports power-off resume printing function, which effectively avoids printing failure and material waste caused by sudden power outages. The system integrates 10 mainstream international languages: Chinese, English, Japanese, French, Portuguese, Turkish, German, Spanish, Italian and Russian, perfectly serving global users.

3. Application Scenarios

Ideal for cake bakeries, dessert shops, handmade baking studios, school teaching, food scientific research, personalized dessert customization, cake decoration, food text printing and special-shaped artistic food modeling.

4. Product Specifications

Item
Specification
Brand
HE3D
Model
QL-220
Machine Dimension
350*365*490mm
Printing Size
220*220*250mm
Package Dimension
575*390*235mm
Net Weight
8.7KG
Gross Weight
11KG
Layer Height
0.2-2mm
Printing Speed
30-250mm/s
Printing Mode
TF Card Offline Printing
Supported File Formats
STL, OBJ, STP, PRT, SLDPRT, 3DM, IGS
Compatible System
Windows XP / WIN7 / WIN8 / WIN10
Slicing Software
Creality Print, Cura, Repetier-Host, Simplify3D
Printing Accuracy
±0.1mm
Printing Platform
PC Spring Steel Plate + Food-Grade Mat
Mainboard
32-bit Silent Mainboard
Nozzle Specifications
1.2mm(15G), 1.6mm(14G), 1.9mm(13G), 2.2mm(12G)
Power-off Resume Printing
Supported
Nozzle Quantity
1 Piece
Input Voltage
AC 110-220V
Rated Power
350W
Syringe Capacity
60ml (5 syringes included)
Recommended Chocolate Printing Temperature
32℃-34℃ (Optimal: 34℃)
Hot Bed Temperature
Max 100℃ (Not required for normal use)
Nozzle Heating Temperature
Max 60℃
Extrusion Method
Proximal Electric Screw Precision Extrusion
Applicable Materials
Chocolate, salad dressing, jam, icing paste and other particle-free fluid edible materials

5. Standard Accessories

  • Disposable sterile syringes × 5
  • Multi-size nozzles (1.2mm/1.6mm/1.9mm/2.2mm)
  • Food-grade platform protective mat
  • TF card & software files

6. Operation Instructions

6.1 Machine Installation

The machine is pre-assembled before delivery. Users only need to fix the platform steel plate, connect the power supply and complete automatic leveling. The whole installation process takes about 10 minutes for immediate use.

6.2 Material Loading

Fill fluid food materials with a disposable sterile syringe, install the syringe on the extrusion motor, and select the matching nozzle size according to the model details.

6.3 Temperature Setting

Set the heating temperature between 32℃ and 34℃ for pure cocoa butter chocolate (34℃ is recommended). Do not overheat to avoid material deterioration.

6.4 Slicing & Printing

Process STL/OBJ model files via compatible slicing software such as Cura, save the files to the TF card, insert the card into the machine, select the target file and start offline printing.

6.5 Finishing & Cleaning

Remove the finished food model easily from the food-grade mat after printing. Replace with a new disposable syringe when changing materials to keep the machine hygienic.

7. Precautions

  • Only use particle-free fluid edible materials. Solid particles will cause nozzle clogging.
  • Pure cocoa butter chocolate is recommended. Compound chocolate with unstable viscosity is not applicable.
  • Replace a brand-new disposable syringe for different materials to avoid cross-contamination.
  • Do not touch the heating nozzle during operation to prevent scalding injuries.
  • Clean the machine regularly and keep the working environment clean and dry.
  • Cut off the power supply if the machine is not in use for a long time.

8. After-Sales Service

We provide professional technical support and complete after-sales service. Please contact our customer service team in a timely manner if you encounter any operational, parameter or equipment failure problems.
