Products Description:

TC48 Clay 3D Printer Upgrade Kit

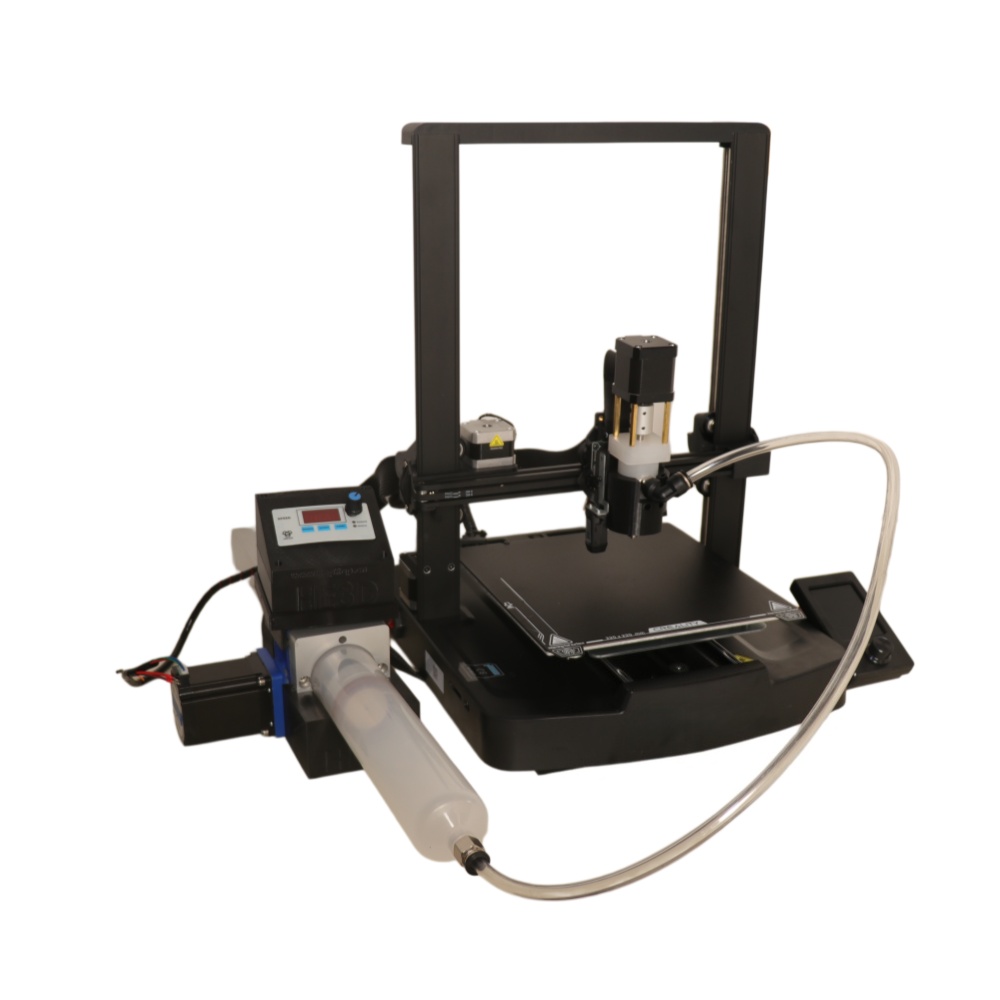

Product Introduction: The TC48 clay 3D printer upgrade kit can quickly convert ordinary FDM desktop 3D printers into clay and paste 3D printers. No firmware modification is required, compatible with most FDM printers on the market, plug and play.

1. Basic Parameters

Model: TC48
Net Weight: 4.6KG
Gross Weight: 5.4KG
Product Dimension: 590×180×200mm (Floor area: 590×180mm)
Package Dimension: 330×225×160mm
Material Tube: 80cm length, 6mm inner diameter
Power Supply: DC24V (Self-prepared power supply ≥100W)
Material Tank Capacity: 500mL (1 tank included as standard)

2. Motor Configuration

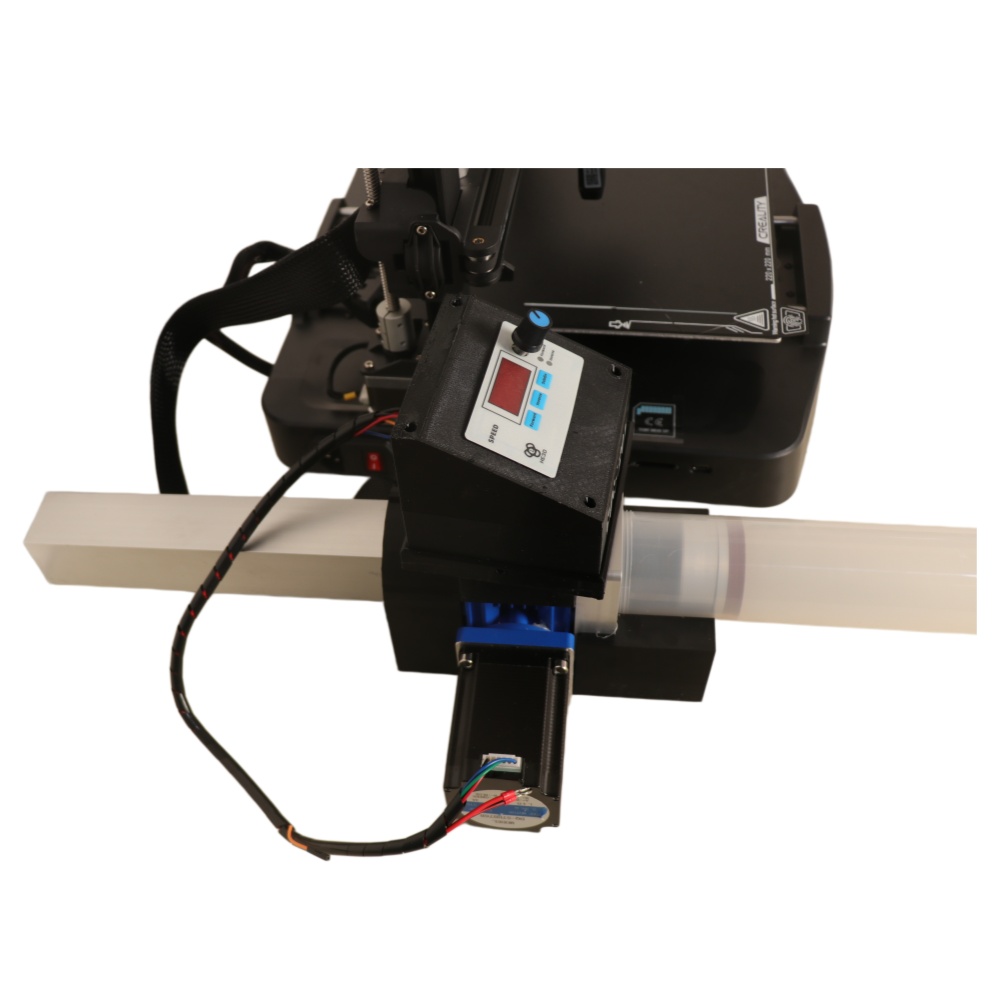

Remote Feeding Motor: 76-type body, 57 stepper motor, 3.2A operating current, 2.3N·m high torque, stable feeding without jamming
Front Extruder Motor: 42 stepper motor, 48mm body length, precise material control for uniform and stable output

3. Controller Core Advantages

No Firmware Modification: No need to rewrite the 3D printer mainboard firmware, non-destructive installation, no impact on original printer functions
Adjustable Subdivision: Supports 1–64 subdivision levels to meet printing precision requirements of different textures
Adjustable Pulse Speed: Pulse value adjustable from 1 to 999, ensuring high-precision speed regulation
Real-time Fine Tuning: Freely adjust feeding speed and clay output during printing to optimize molding effect
Synchronous Linkage: Connect controller signal wire to the printer’s PUL port to realize synchronous start and stop with the original extruder
Dual Working Modes: Support mainboard synchronous linkage or independent standalone operation, adapting to various printing scenarios

4. Working Principle

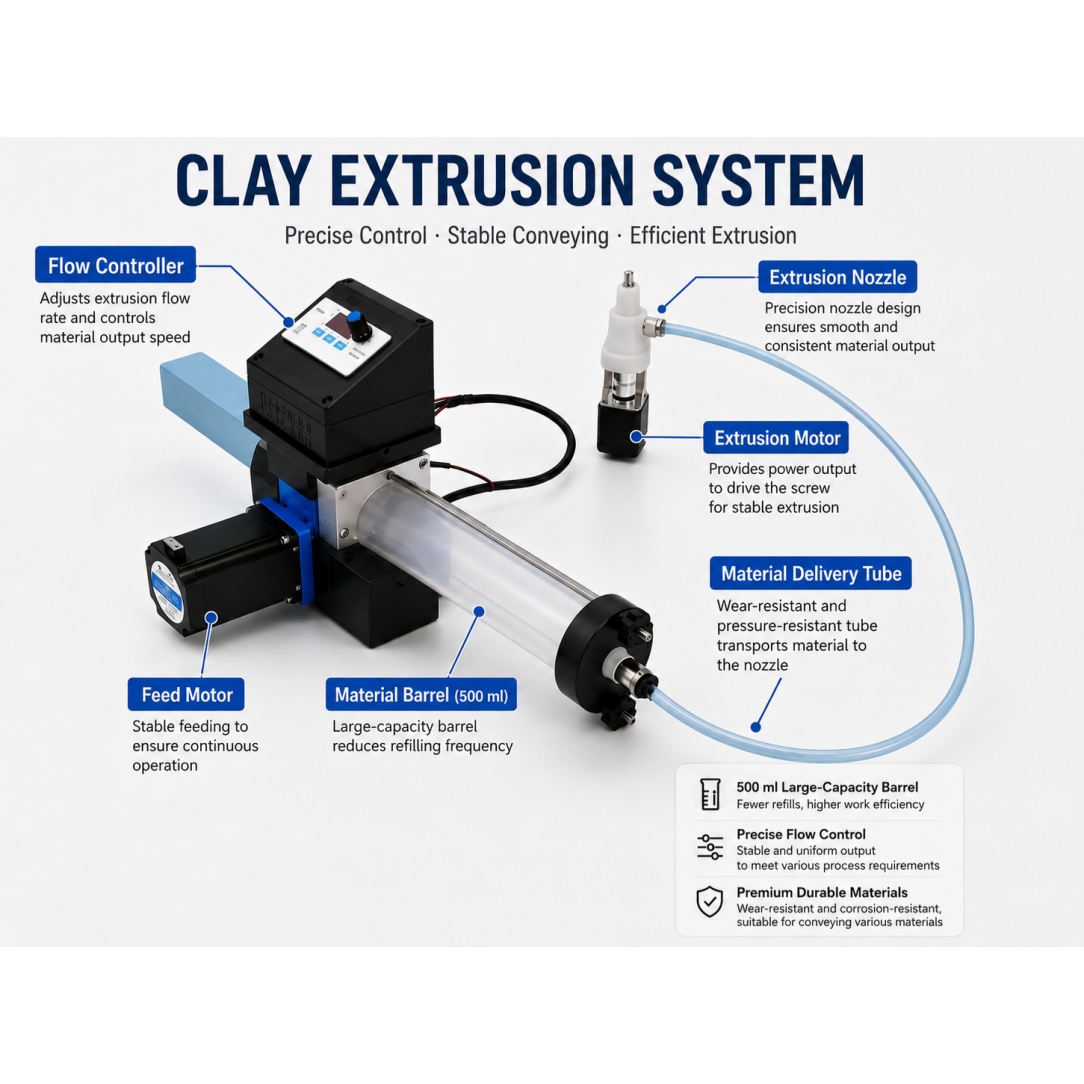

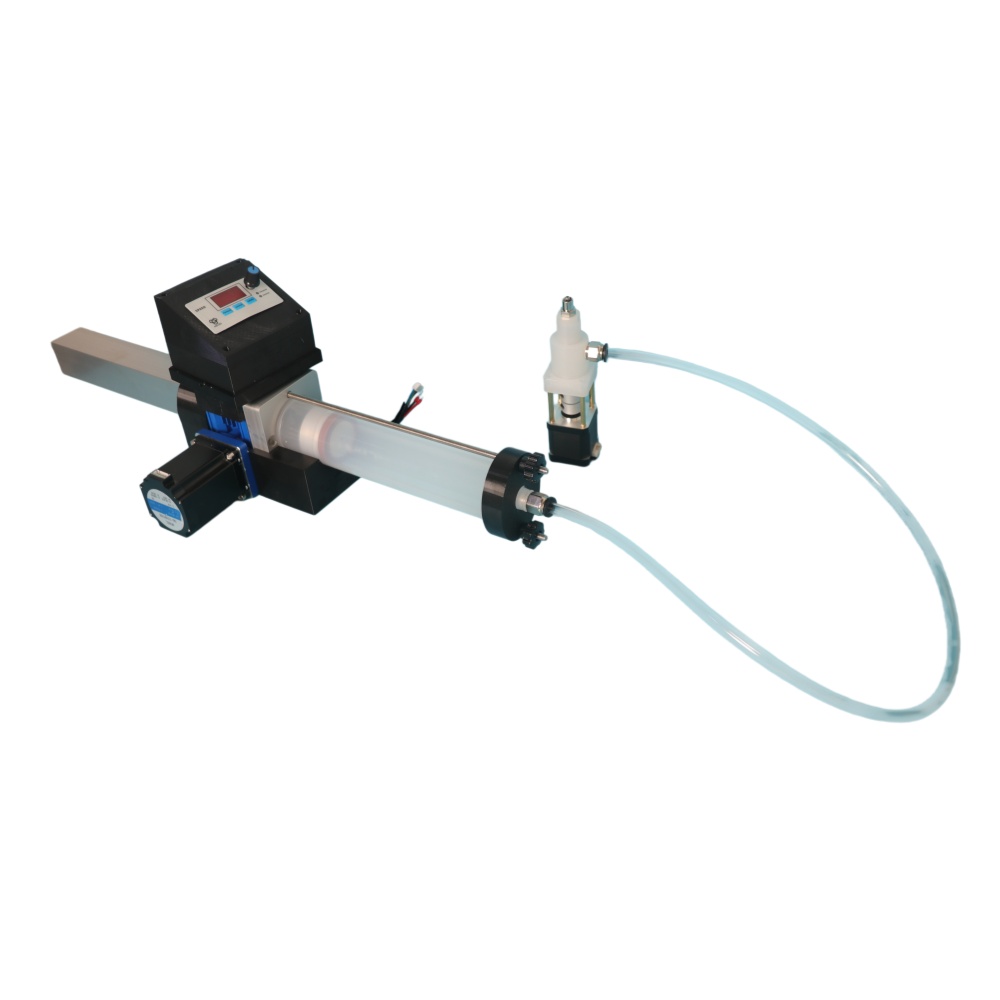

Adopts a dual-system combination of remote motor push rod feeding + short-range screw extrusion. The rear high-torque motor ensures stable material feeding, while the front precision screw realizes accurate flow control, effectively solving common problems such as uneven output, material breakage and blockage of clay and paste materials.

5. Compatible Materials

Suitable for all kinds of fluid soft materials, including pottery clay, ceramic slurry, colloid and various semi-fluid paste materials.

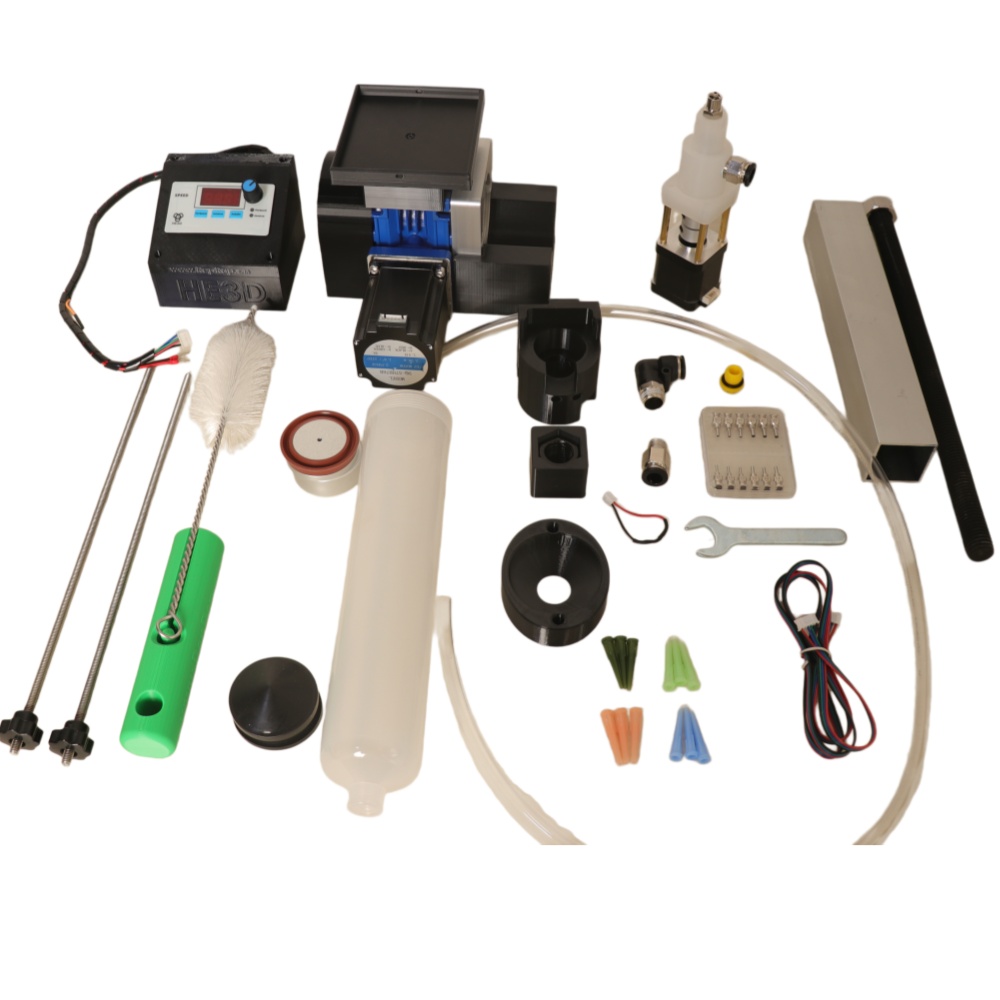

6. Nozzle Configuration (24 Pcs In Total)

12 Pcs Short Stainless Steel Nozzles: 1.6mm, 1.9mm, 2.2mm, 2.5mm
12 Pcs Long Plastic Nozzles: 1.5mm, 2.0mm, 2.4mm, 3.0mm

7. Compatible Models & Installation Support

Compatible with most FDM desktop 3D printers on the market.

Free Ender-3 V3SE mounting base included. For other printer models, you can modify and print the mounting base by using our official model files. If you encounter installation problems, our team provides free custom design and technical support to help you complete the modification.

8. Target Users

Pottery manufacturers, R&D personnel, scientific research institutions, laboratories, university research groups, 3D printing enthusiasts and DIY modification lovers.
