SS100D-1500W Electric Shredder Product Manual
1. Product Overview

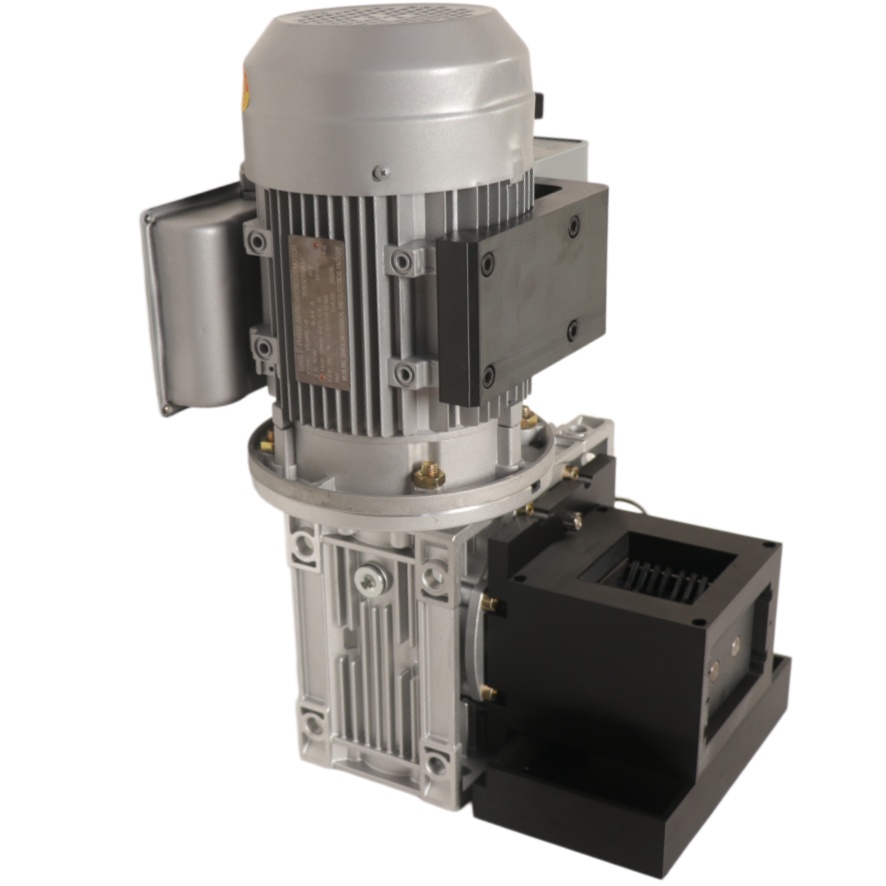

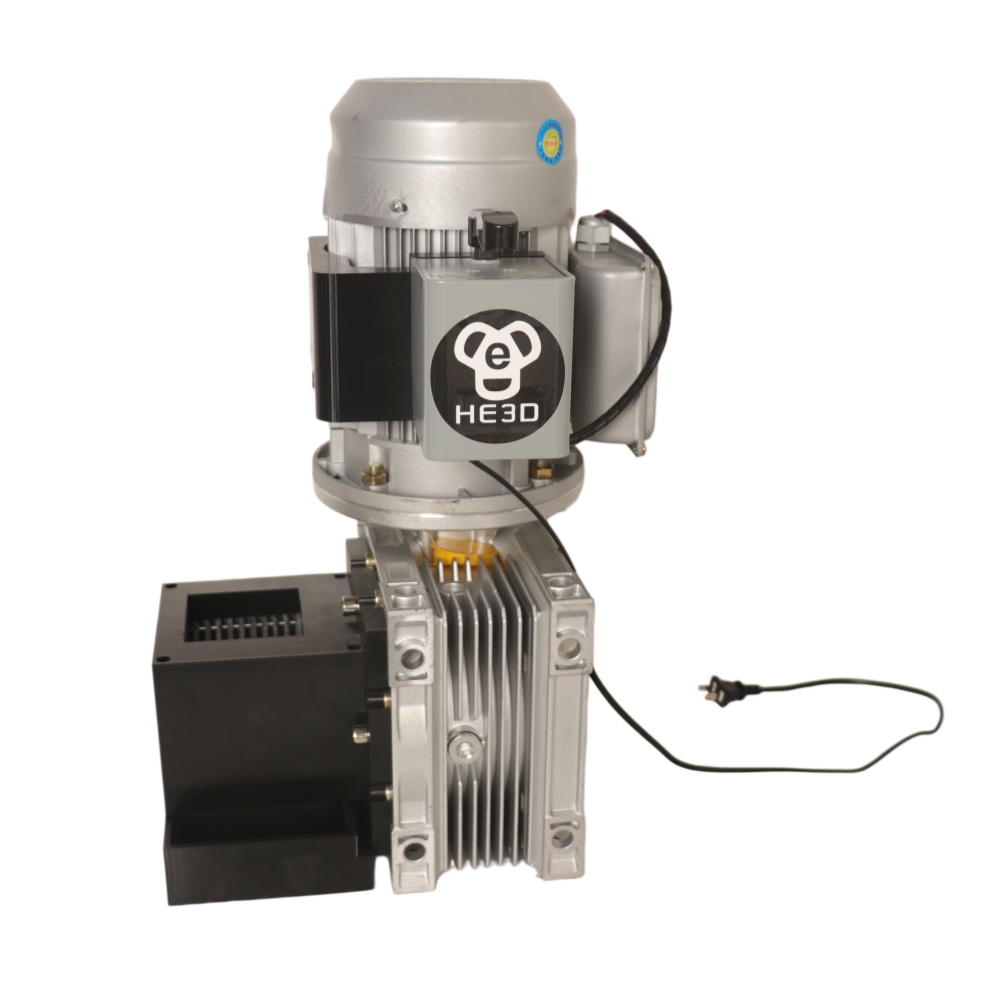

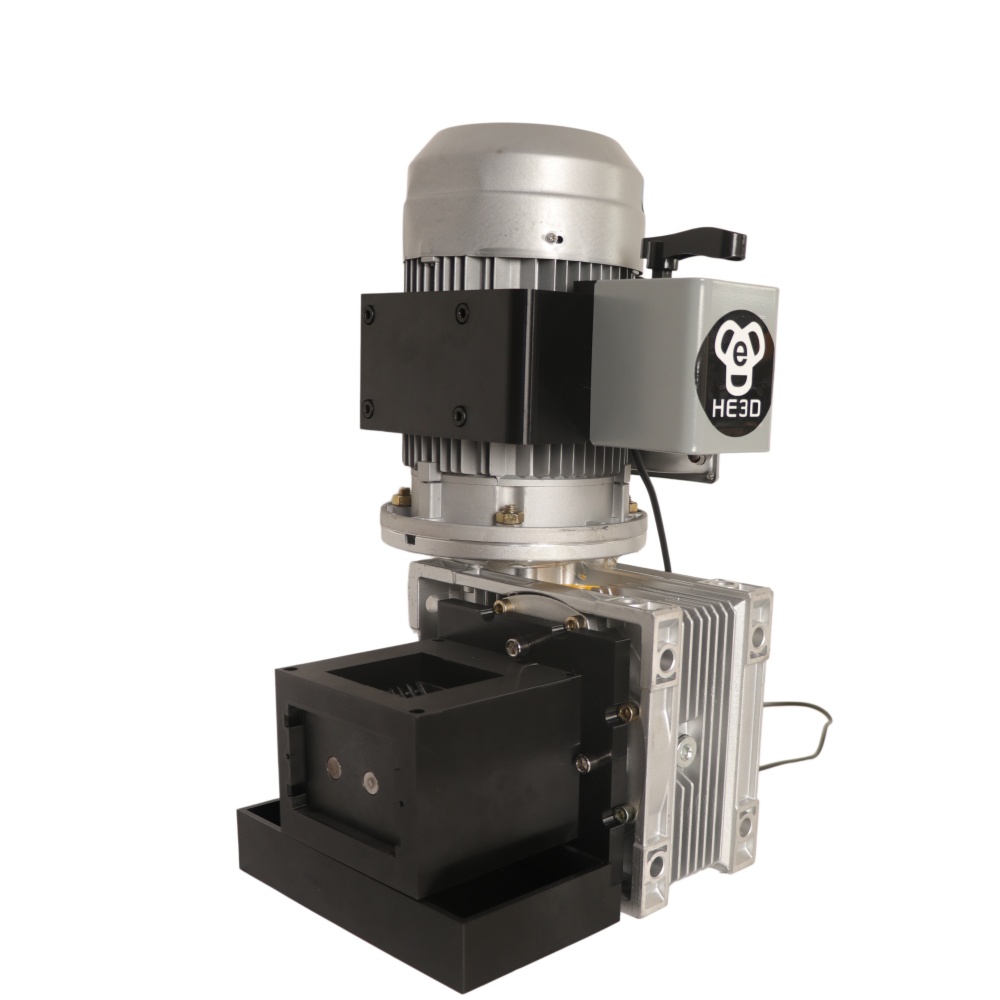

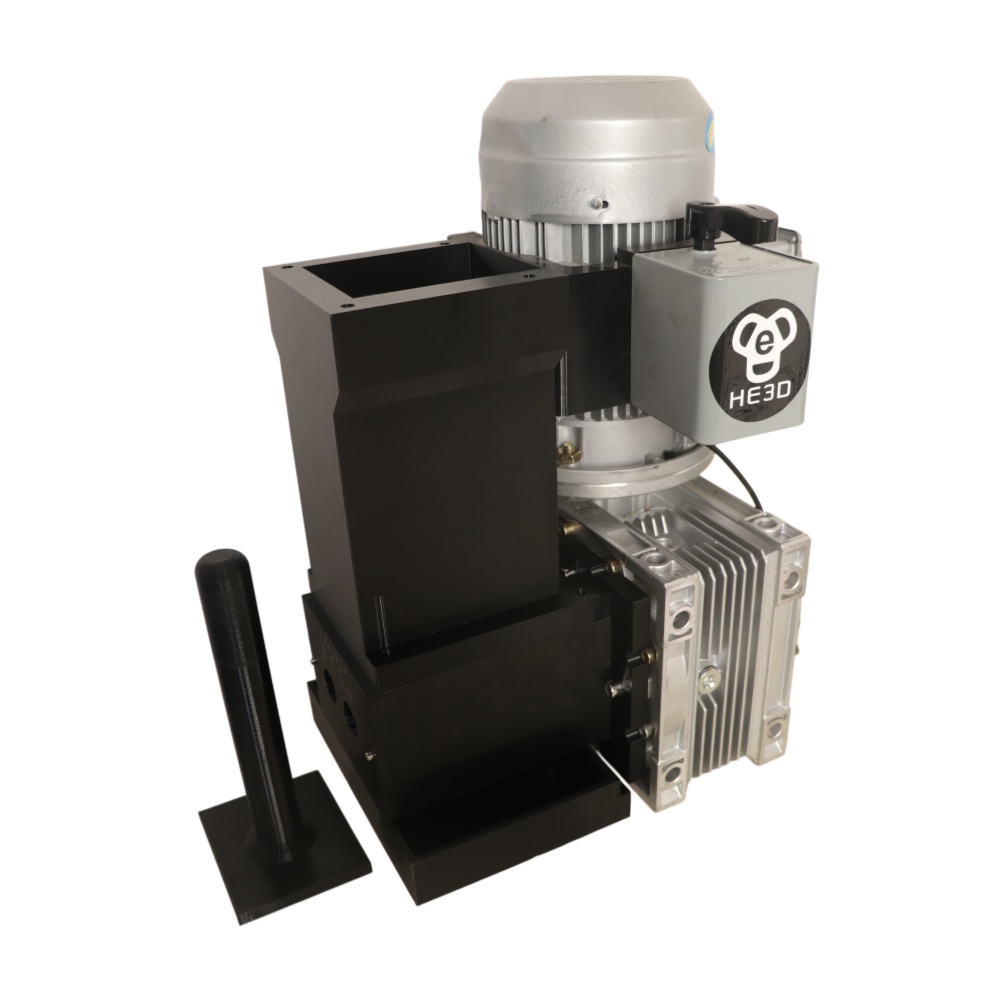

The SS100D-1500W electric shredder is a professional desktop multi-functional crushing equipment. It is specially designed for laboratory sample pretreatment, school teaching demonstration, maker DIY creation, live broadcast effect display and daily material processing. Equipped with a 1500W high-power DC motor and a 60:1 high-reduction gearbox, it achieves low-speed operation, high torque output and low noise. Adopting a tool-free pull-out core design with full washable structure, forward and reverse anti-jam function, the machine features simple operation and easy maintenance. It can stably shred various soft and semi-soft non-metallic materials with wide applicability.
2. Processable Materials
Paper, thin plastic sheets, wood scraps, Chinese medicinal materials, nuts and dried goods, fruits, vegetables, meat ingredients and other soft or semi-soft non-metallic materials.
3. Product Specifications
Model: SS100D-1500W
Rated Power: 1500W
Fixed Speed: 23 RPM
Reduction Ratio: 60:1 (High Torque Output)
Net Weight: 33KG
Gross Weight: 36KG

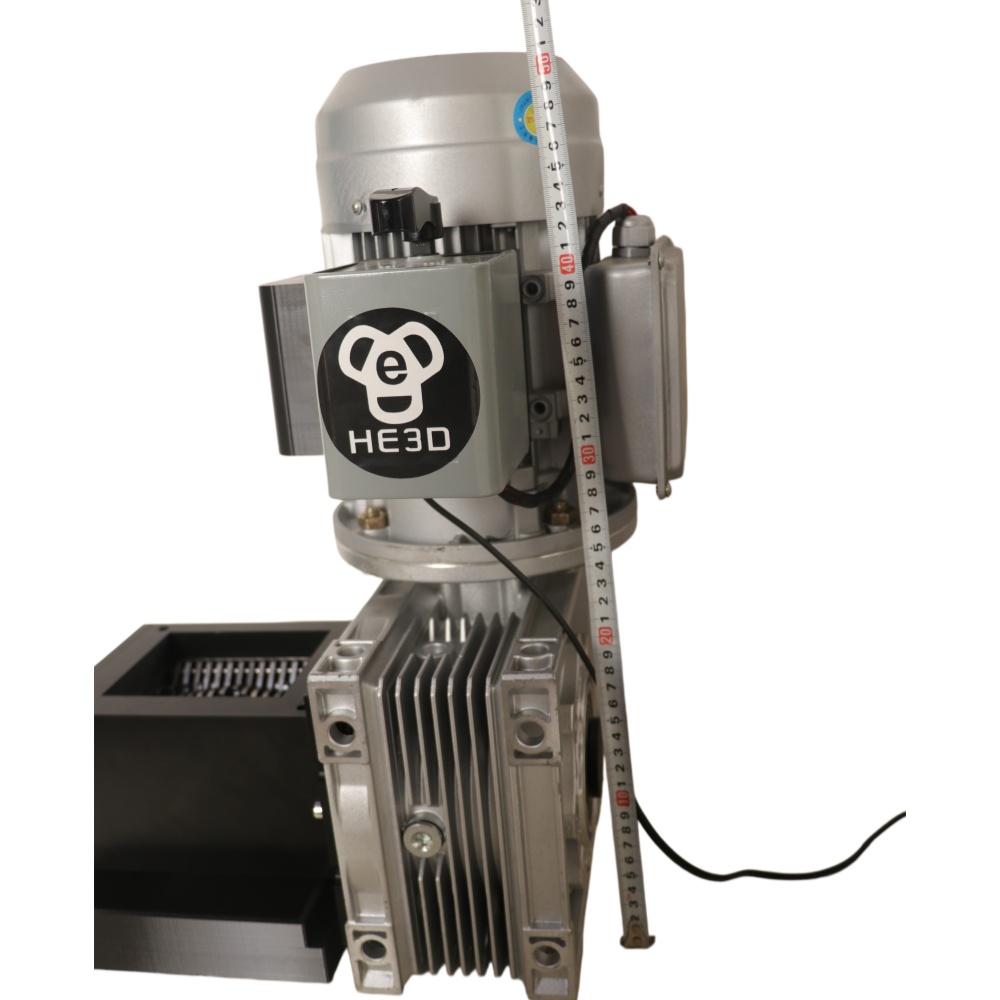

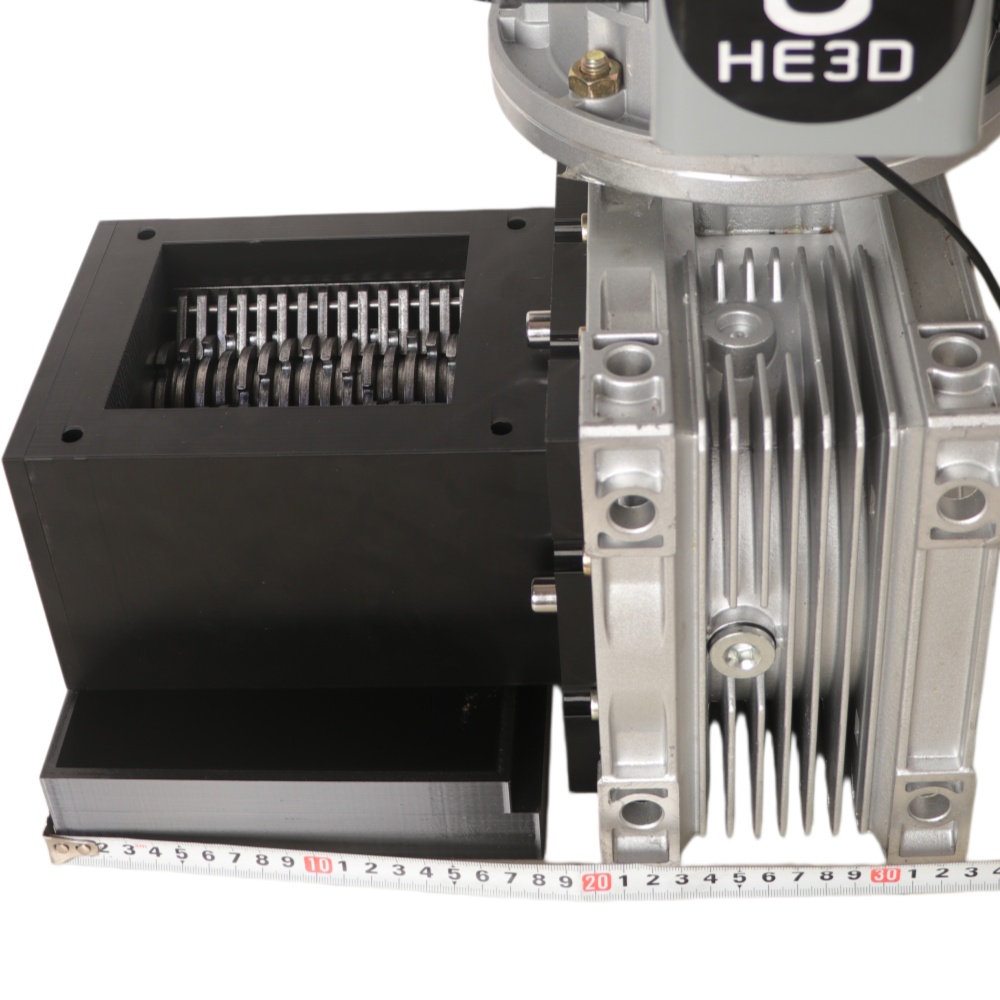

Product Dimension: 510mm (H) × 300mm (L) × 280mm (W)
Blade Material: High-strength 65Mn Manganese Steel (Heat-treated)
Blade Thickness: 4mm
Blade Spacing: 4mm

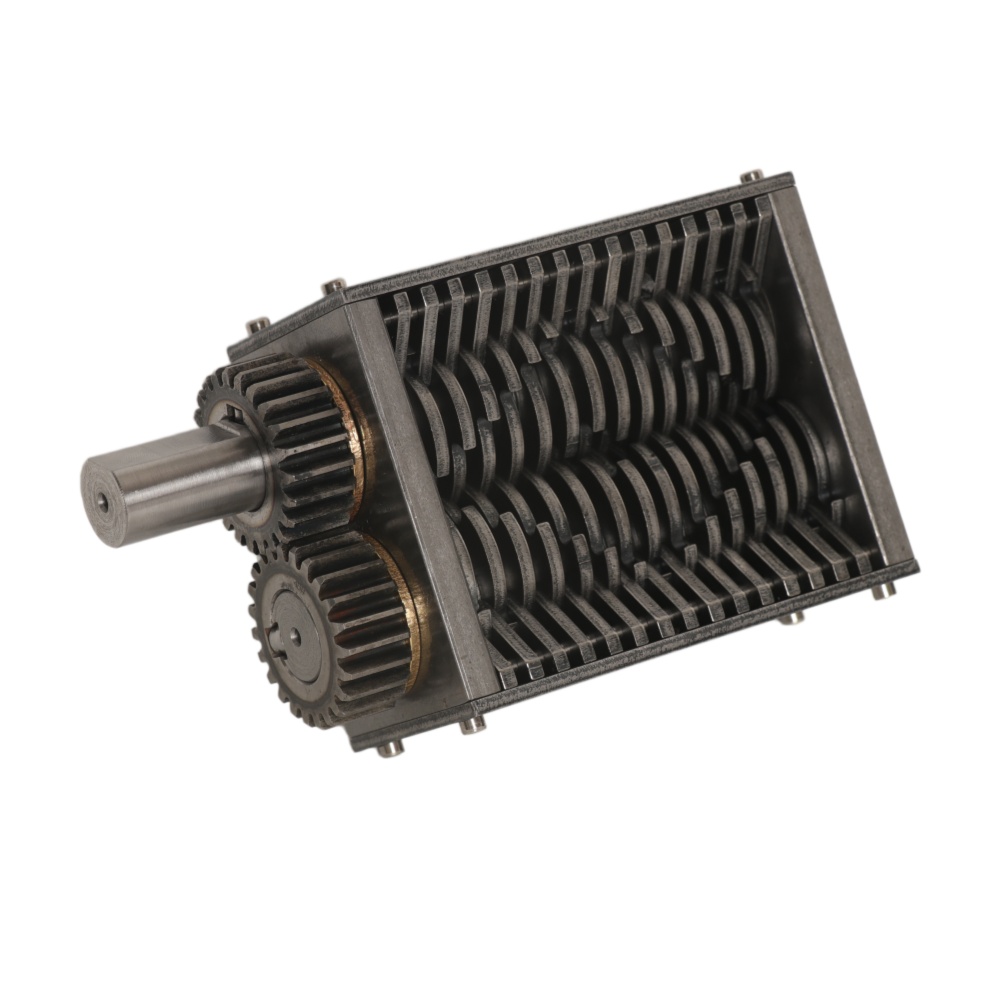

4. Core Advantages1. Tool-Free Disassembly & Fully Washable Core

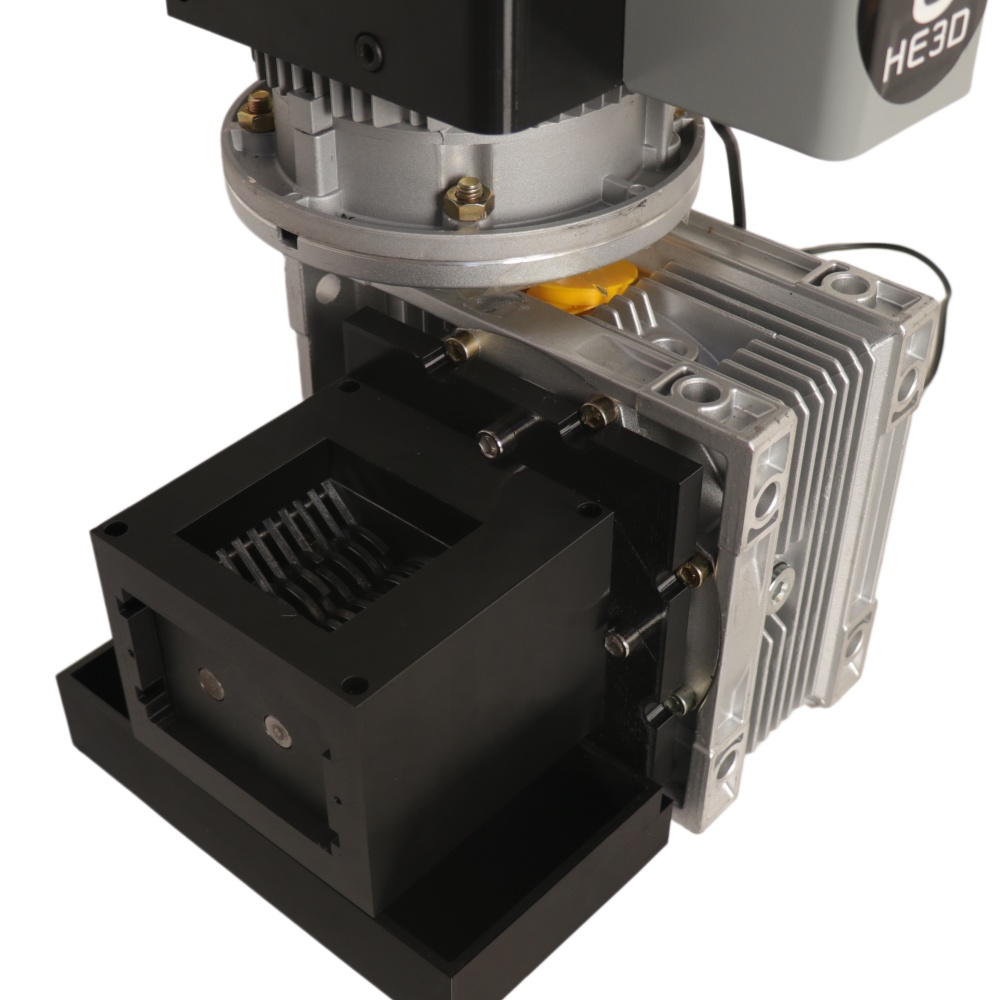

Adopts an upgraded drawer-type pull-out core, which can be disassembled in seconds without any tools. Effectively solves residue problems caused by meat, medicinal materials and wet materials. The entire core can be directly washed with clean water without dead corners, avoiding cross-contamination and greatly simplifying daily maintenance.

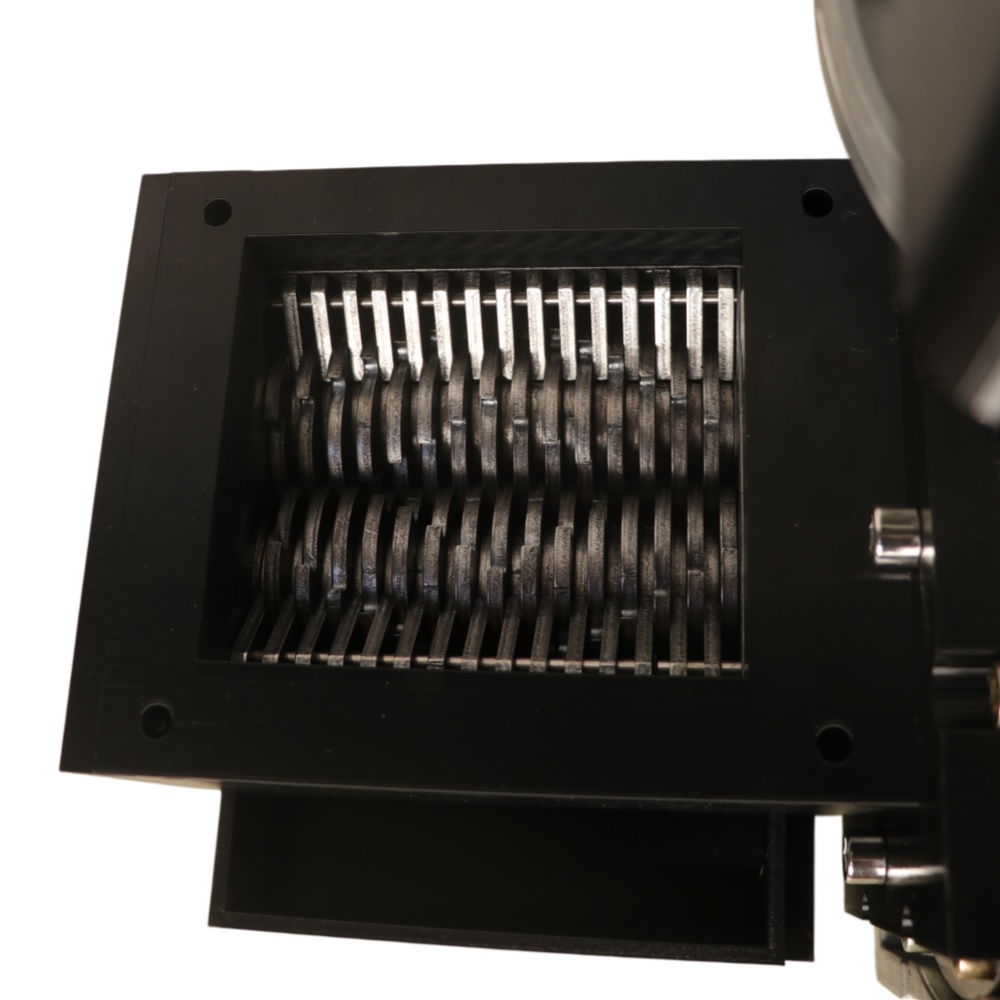

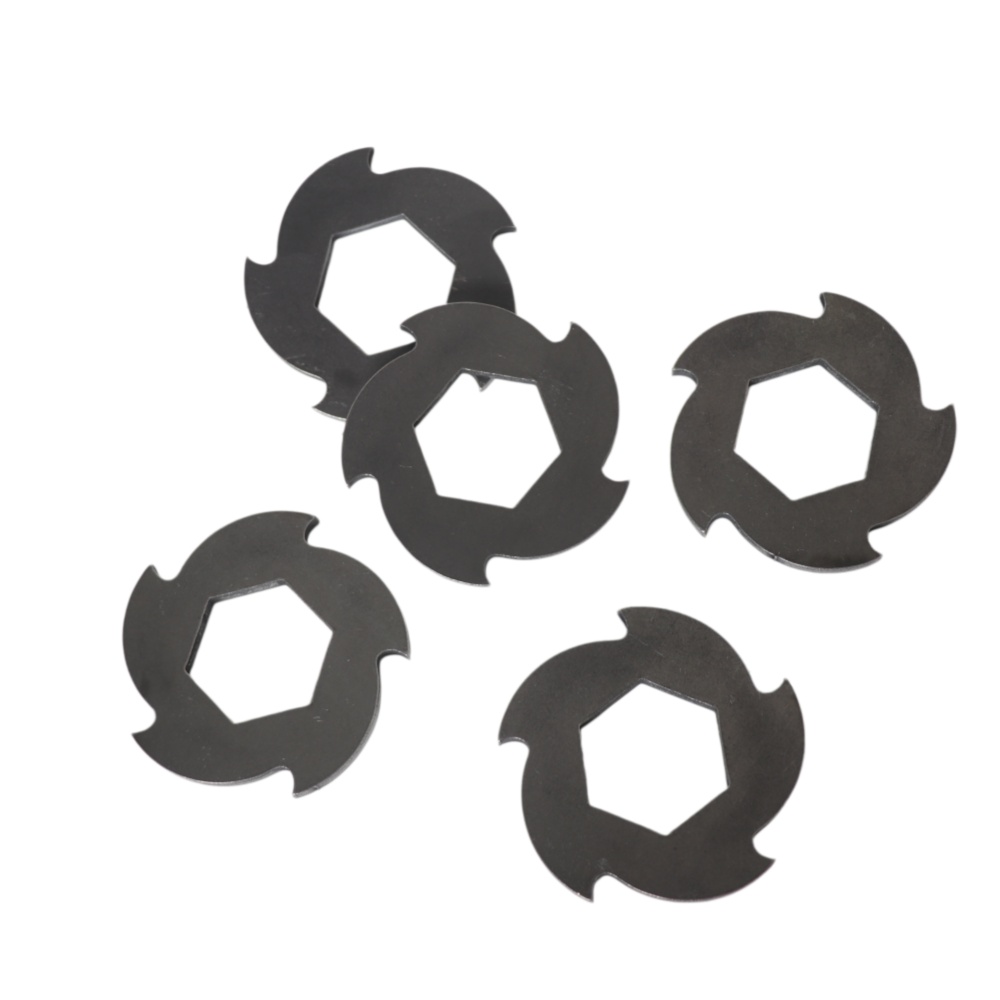

2. Wear-Resistant 65Mn Manganese Steel Thickened Blades

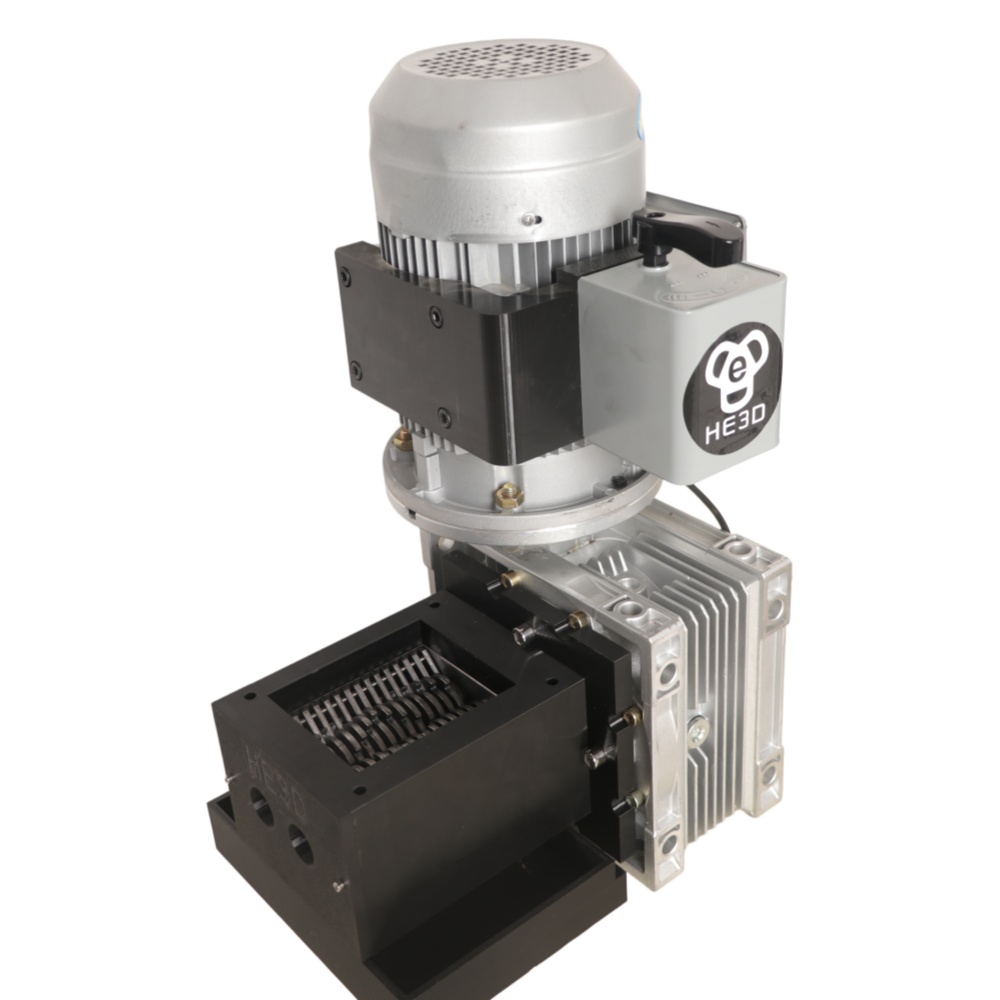

Industrial-grade 65Mn manganese steel blades with professional heat treatment reinforcement. The 4mm thick blade body and 4mm uniform spacing provide high hardness, strong toughness and excellent impact resistance. The blades are not easy to curl or deform, ensuring uniform crushing effect and longer service life than ordinary blades.

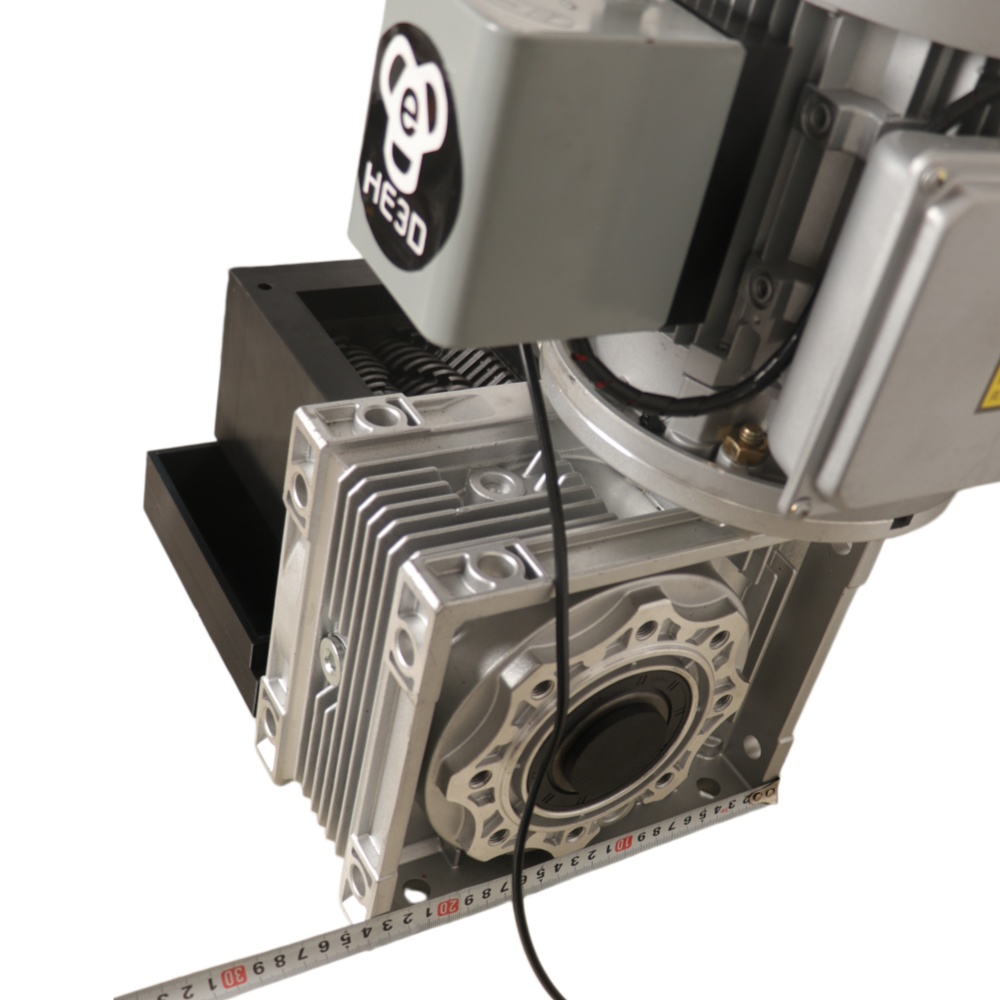

3. Low Noise Operation & High Torque Power
Equipped with a high-precision 60:1 reduction gearbox for efficient power conversion. The low-speed 23RPM operation reduces noise fundamentally and ensures stable running without vibration. Safe and quiet for use in laboratories, classrooms, studios and home environments.
4. Forward & Reverse Anti-Jam & Multi-Scenario Adaptation

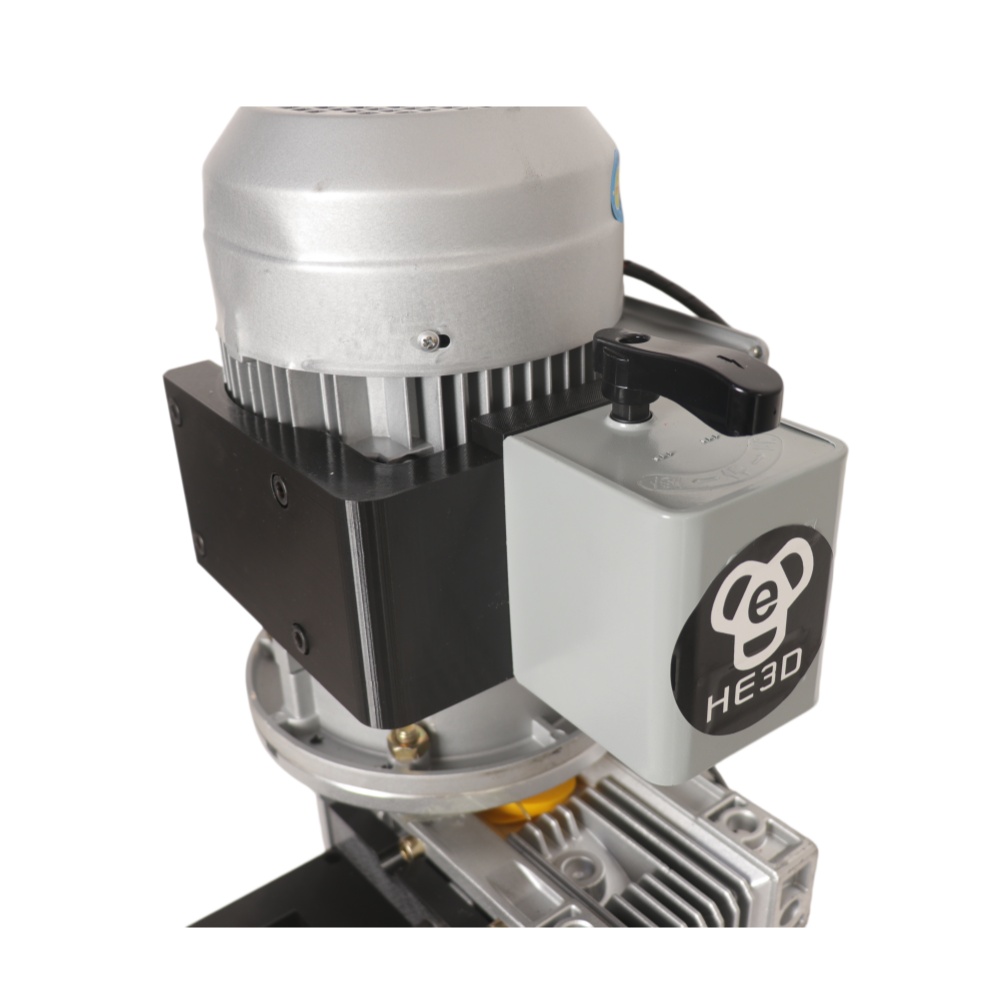

Independent forward/reverse switch quickly clears material jams with one click without disassembly. The machine allows flexible speed adjustment according to material hardness, supporting both fine shredding and high-efficiency crushing to meet diverse processing needs.
5. Application Scenarios
1. Scientific Laboratory: Sample pretreatment, material crushing, experimental analysis
2. Campus Teaching: Material science popularization, classroom experiment demonstration, teaching display
3. Maker DIY: Creative handmaking, waste material recycling and reconstruction
4. Live Broadcast Display: Material crushing evaluation, science popularization live show, visual effect demonstration
5. Daily Use: Crushing waste paper, thin plastic, food ingredients, Chinese medicinal materials and other conventional materials
6. Safety Precautions
1. Do not put hands, fingers or hard metal objects into the feeding port during operation to avoid safety accidents.
2. Do not process stones, iron blocks, alloys and other super-hard materials. Only iron sheets ≤0.5mm and copper sheets ≤1mm are allowed to prevent blade and core damage.
3. Clean and dry the blades and core in time after processing wet or oily materials to prevent rust and extend service life.
4. Do not open the core cabin during operation. Disassembly and cleaning must be performed after stopping and powering off the device.
